State December 2025
My HomeLab is based on three datacenters with the following resources:
984 CPU Cores
196 GHz CPU Frequency
28 TB RAM
212 TB Flash Capacity
117 TB HDD Capacity
41 physical Servers
23 GPUs (vGPU & AI)
3 Storage Arrays
12 Network Switches
7 Wifi Access Points
Datacenter Physical View:
DC1_Rack1: (Move over elements for more information)
Rittal CMC
Rack Management
Patchpanel
RJ-45 Patch Panel. Every cable is labled.
Orange cable = Power
Blue cable = Network Interconnect
Yellow cable = IPMI
Black cable = KVM
Red cable = Internet
Ubiquit 10GbE Router
Ubiquiti Networks XG-8 Router
Cable Management
Brush strips for cable entry
Ubiquiti USW Pro Aggregation
28 x 10GbE SFP+ and 4 x 25GBE SFP28 Switch
Cable Management
Brush strips for cable entry
Internet Business Line
Cable Modem for 1000Mbps Downstream and 50 Mbps Upstream
GE4 on Velocloud Edge
Internet DSL Line
DSL Modem for 50Mbps Downstream and 10 Mbps Upstream
GE5 on Velocloud Edge
Internet Business Line
Cable Modem for 450Mbps Downstream and 40Mbps Upstream.
GE3 on Velocloud Edge
Internet LTE
LTE Modem on House roof for 300Mbps Downstream and 50 Mbps Upstream
GE6 on Velocloud Edge
Velocloud Edge 840
Dual Edge 840 HA Cluster for Testing
Velocloud Edge 680
Main SD-WAN Solution
Combines all Internet connections
Ubiquiti USW Pro 48 PoE
48 x 1GbE RJ-45 with Poe and 4 x 10GbE SFP+
Patch Panel
RJ-45 Patch Panel. Every cable is labled.
Orange cable = Power
Blue cable = Network Interconnect
Yellow cable = IPMI
Black cable = KVM
Red cable = Internet
Synology RS1221+
NAS with 8 x 4TB SATA SSD, 32GB RAM, 2 x 25GbE SFP28 NIC
Raid 6
LTO
Dual LTO4 SAS Drives
TFT Console
Local Console with Display and Keyboard / Mouse combination
Dell R740 VCF HoloDeck
VMware Cloud Foundation 3 Pod Demo
2 x Intel 6258R 28 Cores 2,7GHz
1536GB DDR4 2666MHz RAM
Dell Perc 740P Controller with 8GB Cache
1 x Nvidia L4 GPU for AI workloads
1 x 400GB SAS SSD ESXi Boot
8 x 2TB SAS SSD Raid 10 VCF
2 x 7.68TB SAS SSD Raid 1 WekaIO
2 x 10GbE SFP+
Dell R740xd Spare
Spare Server / Test Server + 4 other not visible here
Free Rack Space
2 HE free / Old Data Domain Bezel
Network Cable Tray
Tray for network cables with PowerVault Bezel
Brocade DS-300B SAN Switches
Dual FibreChannel SAN Switches with 24 x 8Gbit ports
IBM DS3512 Storage Array
8Gbit FibreChannel Storage Array with 12 x 2TB NL SAS HDDs
IBM DS4700 Storage Array
4Gbit FibreChannel Array with 16 x 300GB FC HDDs
APC SMC1000I-2UC UPS
SmartConnect Featured UPS with estimated runtime of 45 Minutes
DC1_Rack2: (Move over elements for more information)
Dell R740 vSAN ESA Max
VMware vSAN ESA Max Full NVMe
2 x Intel 6130 16 Cores 2,10GHz
768GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 400GB SATA SSD ESXi Boot
4 x Intel P4800X 375GB NVMe
2 x 100GbE QSFP
2 x 10GbE SFP+
Dell R740 vSAN ESA Max
VMware vSAN ESA Max Full NVMe
2 x Intel 6130 16 Cores 2,10GHz
768GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 400GB SATA SSD ESXi Boot
4 x Intel P4800X 375GB NVMe
2 x 100GbE QSFP
2 x 10GbE SFP+
Dell XR2 AI
Nvidia AI Enterprise Platform (VMware vSAN OSA)
2 x Intel 4214 12 Cores 2,2GHz
384GB DDR4 2400MHz RAM
Perc Controller
1 x 240GB M2 SATA SSD ESXi Boot
1 x 800GB SAS SSD vSAN Cache
1 x 800GB SAS SSD vSAN Capacity
1 x Nvidia T4 GPU
2 x 10GbE SFP+
Dell XR2 AI
Nvidia AI Enterprise Platform (VMware vSAN OSA)
2 x Intel 4214 12 Cores 2,2GHz
384GB DDR4 2400MHz RAM
Perc Controller
1 x 240GB M2 SATA SSD ESXi Boot
1 x 800GB SAS SSD vSAN Cache
1 x 800GB SAS SSD vSAN Capacity
1 x Nvidia T4 GPU
2 x 10GbE SFP+
Dell XR2 AI
Nvidia AI Enterprise Platform (VMware vSAN OSA)
2 x Intel 4214 12 Cores 2,2GHz
384GB DDR4 2400MHz RAM
Perc Controller
1 x 240GB M2 SATA SSD ESXi Boot
1 x 800GB SAS SSD vSAN Cache
1 x 800GB SAS SSD vSAN Capacity
1 x Nvidia T4 GPU
2 x 10GbE SFP+
Dell XR2 AI
Nvidia AI Enterprise Platform (VMware vSAN OSA)
2 x Intel 4214 12 Cores 2,2GHz
384GB DDR4 2400MHz RAM
Perc Controller
1 x 240GB M2 SATA SSD ESXi Boot
1 x 800GB SAS SSD vSAN Cache
1 x 800GB SAS SSD vSAN Capacity
1 x Nvidia T4 GPU
2 x 10GbE SFP+
Dell R740xd VCDR
Backup and Desaster Recovery (Cohesity, DataDomain, PowerProtect, Veeam)
2 x Intel 8167M 26 Cores 2,0 GHz
768GB DDR4 2666MHz RAM
Dell Perc H740P Controller 8GB
IBM Serveraid Controller
1 x 400GB SATA SSD ESXi Boot
4 x 800GB NVMe
4 x 18TB 3,5″ Storage Mid Bay SATA HDDs
2 x 7,68TB SAS SSD
2 x 25GbE SFP28
Nvidia Networking SN2100 Switch
16 x 100GbE QSFP Switch Low Latency High Performance
Dual PSU
QSFP Splitter cables for 4 x 25GbE from 1 x 100GbE
Dell VRTX Chassis
Chassis with 10GbE Switch
4 x PSU
2 x CMC
2 x Shared Perc8 Controller
15 x 1,2TB SAS HDDs
4 x Dual Port Mellanox 40GbE NICs QSFP
Dell M640P
Single Site VMware vSAN OSA Cluster
2 x Intel 5118 12 Cores 2,30 GHz
192GB DDR4 2666MHz RAM
Dell Perc Mini Controller
1 x Dell Boss Device with 2 x 240GB SATA M2 ESXi Boot
1 x 200GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
2 x 10GbE Internal (SFP+)
2 x 40GbE QSFP
Dell M640
Single Site VMware vSAN OSA Cluster
2 x Intel 5118 12 Cores 2,30 GHz
192GB DDR4 2666MHz RAM
Dell Perc Mini Controller
1 x Dell Boss Device with 2 x 240GB SATA M2 ESXi Boot
1 x 200GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
2 x 10GbE Internal (SFP+)
2 x 40GbE QSFP
Dell M640
Single Site VMware vSAN OSA Cluster
2 x Intel 5118 12 Cores 2,30 GHz
192GB DDR4 2666MHz RAM
Dell Perc Mini Controller
1 x Dell Boss Device with 2 x 240GB SATA M2 ESXi Boot
1 x 200GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
2 x 10GbE Internal (SFP+)
2 x 40GbE QSFP
Dell M640
Single Site VMware vSAN OSA Cluster
2 x Intel 5118 12 Cores 2,30 GHz
192GB DDR4 2666MHz RAM
Dell Perc Mini Controller
1 x Dell Boss Device with 2 x 240GB SATA M2 ESXi Boot
1 x 200GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
2 x 10GbE Internal (SFP+)
2 x 40GbE QSFP
Console & KVM
1HE Console with TFT and Keyboard / Mouse combination
IBM CGM16 KVM Switch with dual PSU and dual NIC
HTML5 Console for every single server
Cable Tray
Cable Tray for SFP+, SFP28 and QSFP cables with Compellent Front Bezel
Dell R740xd Main Cluster
VMware vSAN 2 Node Cluster with Nested Fault Domains (3 Disk Groups)
2 x Intel 8168 24 Cores 2,70GHz
1536GB DDR4 2666MHz RAM
Dell HBA330 Controller
1 x 200GB SAS SSD ESXi Boot
3 x Intel P4800X PCIe NVMe vSAN Cache
6 x 3,84TB SAS SSD vSAN Capacity
1 x 1,92TB SAS SSD vSAN Direct
1 x Nvidia RTX8000 GPU
2 x 100GbE QSFP
4 x 10GbE SFP+
Dell R740xd Main Cluster
VMware vSAN 2 Node Cluster with Nested Fault Domains (3 Disk Groups)
2 x Intel 8168 24 Cores 2,70GHz
1536GB DDR4 2666MHz RAM
Dell HBA330 Controller
1 x 200GB SAS SSD ESXi Boot
3 x Intel P4800X PCIe NVMe vSAN Cache
6 x 3,84TB SAS SSD vSAN Capacity
1 x 1,92TB SAS SSD vSAN Direct
1 x Nvidia RTX8000 GPU
2 x 100GbE QSFP
4 x 10GbE SFP+
Dell R740 Intel GPU
Intel GPU Test Cluster / VMware vSAN ESA Cluster
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 200GB SATA SSD ESXi Boot
1 x 2TB NVMe P4600
1 x Intel Flex 140 GPU
2 x 40GbE QSFP
2 x 25GbE SFP28
Dell R740 Intel GPU
Intel GPU Test Cluster / VMware vSAN ESA Cluster
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 200GB SATA SSD ESXi Boot
1 x 2TB NVMe P4600
1 x Intel Flex 140 GPU
2 x 40GbE QSFP
2 x 25GbE SFP28
Dell R740 Nvidia Test
Nvidia GPU Test Cluster / VMware vSAN OSA
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 200GB SATA SSD ESXi Boot
1 x 400GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
1 x Nvidia P4 GPU
2 x 40GbE QSFP
2 x 25GbE SFP28
Dell R740 Nvidia Test
Nvidia GPU Test Cluster / VMware vSAN OSA
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
Dell Perc H730P Controller
1 x 200GB SATA SSD ESXi Boot
1 x 400GB SAS SSD vSAN Cache
1 x 960GB SATA SSD vSAN Capacity
1 x Nvidia P4 GPU
2 x 40GbE QSFP
2 x 25GbE SFP28
Dell R740 ESA Cluster
VMware vSAN ESA Cluster
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
No Perc Controller
2 x 16GB IDSM Micro SD Card (Clover Bootloader with NVMe support)
1 x 512GB NVMe ESXi Boot
1 x 2TB Intel NVMe
2 x 10GbE SFP+
Dell R740 ESA Cluster
VMware vSAN ESA Cluster
2 x Intel 6130 16 Cores 2,10GHz
384GB DDR4 2666MHz RAM
No Perc Controller
2 x 16GB IDSM Micro SD Card (Clover Bootloader with NVMe support)
1 x 512GB NVMe ESXi Boot
1 x 2TB Intel NVMe
2 x 10GbE SFP+
Rittal CMC
Rack Management
APC SMT3000RMI2UC UPS
Smart Connect Features UPS with estimated runtime of 28 Minutes
Secret Area
Special project, more infos later

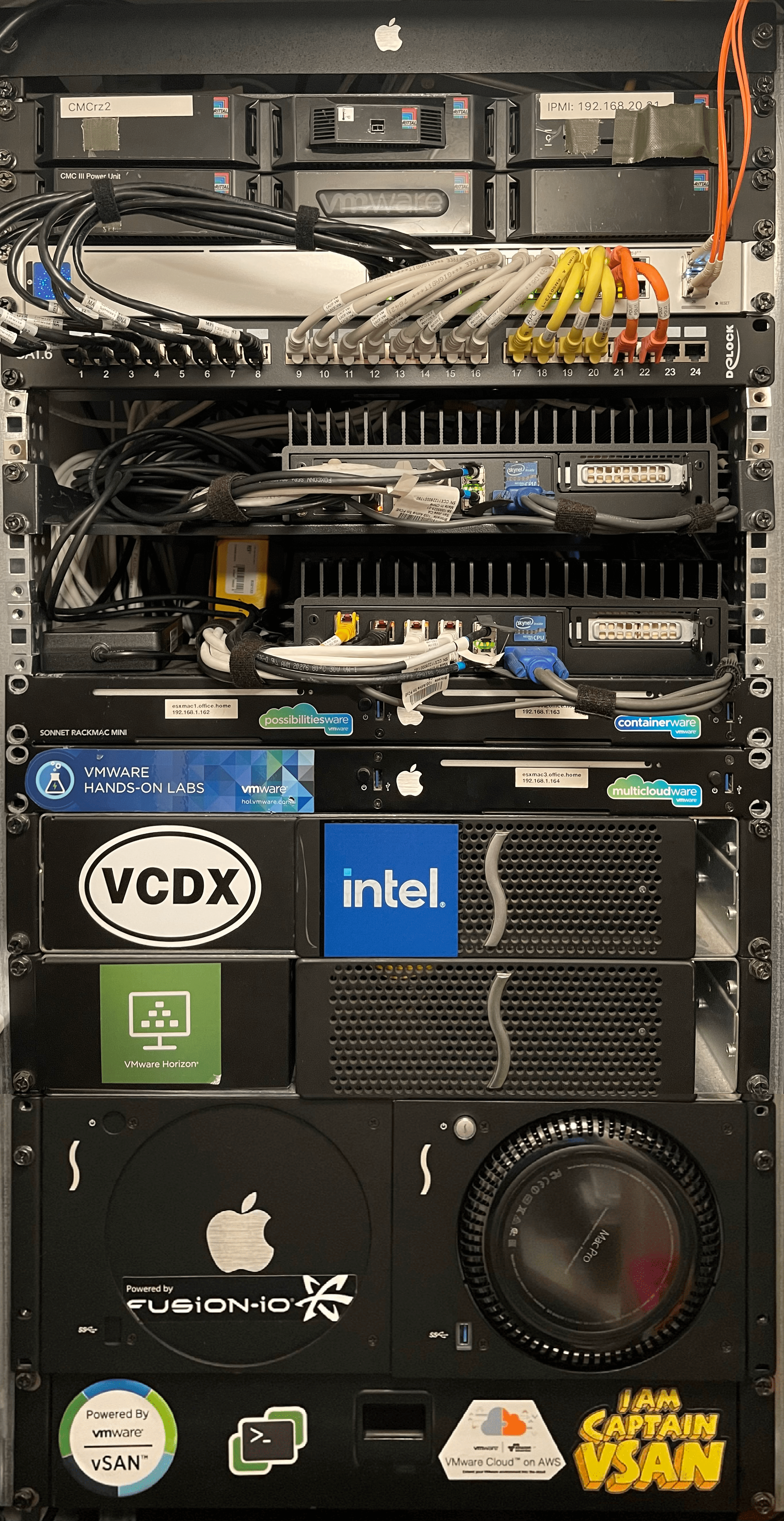

DC2: (Click elements for more information)
CMC
Rittal CMC Rack Management System
SNMP Checks, Temperature etc…
CMC Power
Rittal CMC Power Management (PDU)
CMC connected Power Management System
PDU
Network PDU
ANEL Net-PwrCtrl Home
Network enabled PDU with 3 power sockets
Ubiquiti USW-Pro 24 PoE
Ubiquiti USW Pro 24
24 x 1GbE with PoE
2 x 10 GbE Uplink to Datacenter 1
Connected Systems:
Surveillance Cameras
Raspberry Pi Cluster
Witness Host
Car Diag System
Car Coding System
Patchpanel
Patchpanel
Cable Management for a clean look 🙂
Each cable is labeled on both ends!
Black cable = Mgmt
Grey cable = VMs
Yellow cable = IPMI
Orange cable = Power
Uplink
Uplink
10GbE Fibre Uplink to Datacenter 1
LACP Configuration
10 Gb-SR Gbics
PSU
SuperMicro PSU
External Power Supply for SuperMicro E302-9D
PSU
SuperMicro PSU
External Power Supply for SuperMicro E302-9D
SuperMicro
SuperMicro E302-9D
Passive Cooled Server
1 x Xeon-D Quad Core 2.0 GHz
4 x 64GB DDR4 ECC RAM = 256GB
1 x SuperMicro SATADOM 64GB
1 x Samsung 970 Pro NVMe 1TB vSAN Cache
2 x Samsung 960 4 TB SATA SSD vSAN Capacity
1 x 1 GbE IPMI
2 x 1 GbE Mgmt (LACP)
4 x 1 GbE VMs (LACP)
2 x 10 GbE vMotion / vSAN
SuperMicro
SuperMicro E302-9D
Passive Cooled Server
1 x Xeon-D Quad Core 2.0 GHz
4 x 64GB DDR4 ECC RAM = 256GB
1 x SuperMicro SATADOM 64GB
1 x Samsung 970 Pro NVMe 1TB vSAN Cache
2 x Samsung 960 4 TB SATA SSD vSAN Capacity
1 x 1 GbE IPMI
2 x 1 GbE Mgmt (LACP)
4 x 1 GbE VMs (LACP)
2 x 10 GbE vMotion / vSAN
KVM
IBM GCM16 KVM
Fully deployed IBM GCM16 KVM Switch with HTML5 option. Every datacenter is connected, with EVERY system.
KVM
IBM GCM16 KVM
Fully deployed IBM GCM16 KVM Switch with HTML5 option. Every datacenter is connected, with EVERY system.
Mac Mini
Apple Mac Mini
Core i7 with Quad Core 2,7 GHz
16GB RAM
USB Boot Device
Intel 400GB SATA SSD vSAN Cache
Samsung 1TB SATA SSD vSAN Capacity
1 x 1 GbE NIC onBoard
1 x 1 GbE Thunderbolt NIC
Thunderbolt PCIe Expansion
Mac Mini
Apple Mac Mini
Core i7 with Quad Core 2,7 GHz
16GB RAM
USB Boot Device
Intel 400GB SATA SSD vSAN Cache
Samsung 1TB SATA SSD vSAN Capacity
1 x 1 GbE NIC onBoard
1 x 1 GbE Thunderbolt NIC
Thunderbolt PCIe Expansion
Mac Mini
Apple Mac Mini
Core i7 with Quad Core 2,7 GHz
16GB RAM
USB Boot Device
Intel 400GB SATA SSD vSAN Cache
Samsung 1TB SATA SSD vSAN Capacity
1 x 1 GbE NIC onBoard
1 x 1 GbE Thunderbolt NIC
Thunderbolt PCIe Expansion
Thunderbolt PCIe
Sonnet Thunderbolt PCIe Expansion
PCIe expansion for 10GbE and other cards. Fully functional under ESXi….
Thunderbolt PCIe
Sonnet Thunderbolt PCIe Expansion
PCIe expansion for 10GbE and other cards. Fully functional under ESXi….
Rackmount Kit
Sonnet Rackmount Kit for Apple Mac Pro
Dedicated Rackmount Kit for Apple´s MacPro 2013 (Trashcan)
All ports are accessible, KVM is also connected via Displayport to VGA Adapter
MacPro

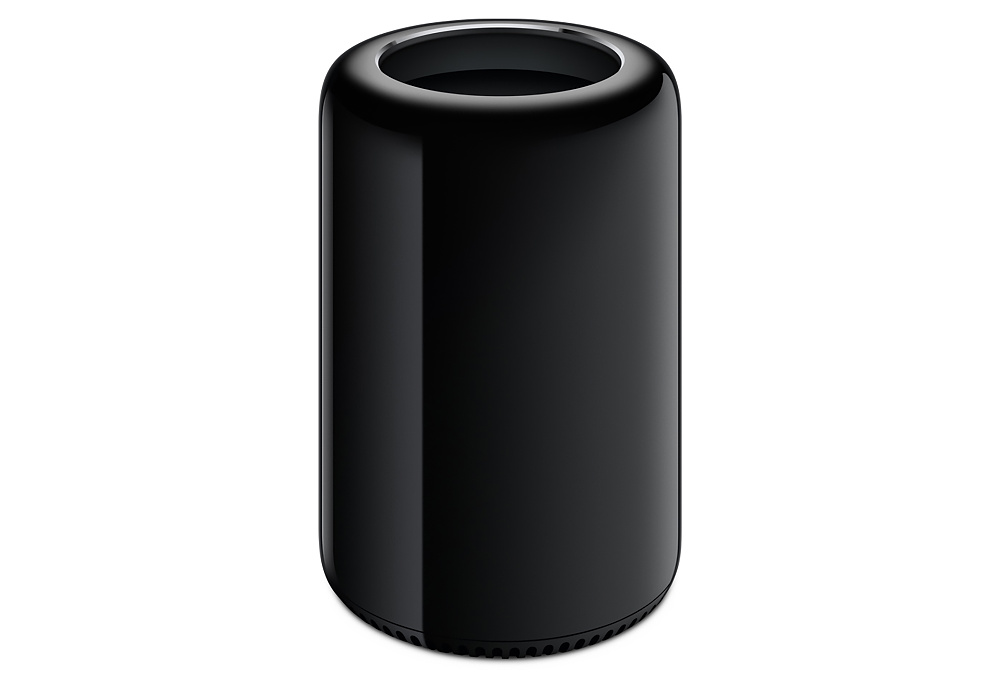

Apple Mac Pro 2013
1 x 16 Core Xeon CPU
64GB RAM
2 x AMD D700 GPUs
3 x 2 TB NVMe SSDs (with SDD Expansion board)
Thunderbolt 10GbE NIC
Organizer
Cable and Adapter Organizer
Drawer with a lot of space….
UPS
APC UPS Outside of rack
APC SMC 1000 IC UPS with SmartConnect Online Monitoring
Estimated Runtime: 30 minutes
DC3: (Click elements for more information)
Ubiquiti USW-Pro
Ubiquiti USW Pro 24
24 x 1GbE with PoE
2 x 10 GbE Uplink to Datacenter 1
Connected Systems:
Surveillance Cameras
Raspberry Pi Cluster
Witness Host
Car Diag System
Car Coding System
Cable Routing
Cable Routing
Cable Organizer for Power, Network and KVM
Just to look good 🙂
Power
Power Distribution
Power for the systems
Including hidden network PDU
HomeKit
HomeKit Plug
Apple HomeKit Wifi Plug for Outdoor Garage Lights
Uplink
Uplink
10GbE Fibre Uplink to Datacenter 1
LACP Configuration
10 Gb-SR Gbics
Ubiquiti AC Pro
Ubiquiti WiFi
Ubiquiti AC Pro Access Point
For Cameras, Laptops and Tablets
APC
APC UPS
APC SMC 1000 IC UPS with SmartConnect
Estimated Runtime: 2h
Maxtang
Maxtang Witness Host
Maxtang EHL-35 “ThinClient Rangee RT-601-L” ESXi Host
1 x Intel Celeron Quad Core 2.0 GHz
1 x 32GB DDR4 S0DIMM
1 x Gigabit USB 3.0 NIC
1 x 120GB Samsung SATA SSD (ESXi Boot)
1 x 960GB Intel SATA SSD D3-4510
Use Case:
All VMware vSAN Witness Appliances
KMS 3rd Node
Raspberry Pi
Raspberry Pi Cluster
Dual Raspberry Pi 4 Cluster with ESXi on ARM (Fling)
Quad Core ARM v8 Cortex A72
8GB LPDDR4 RAM
64GB Boot Device
NAS Storage Connection
KVM Connection via Micro HDMI to VGA
Lego
VMware Lego Mini-Figures
My collection of all available Lego Mini Figures from VMware and Others
Hidden_PDU
Network PDU
ANEL Net-PwrCtrl Home
Network enabled PDU with 3 power sockets
Virtual View:
Internet:
4 Different Connections:
- 450Mbit Download and 50Mbit Upload with 5 static public IPs from cable provider
- 1000Mbit Download and 50Mbit Upload with 1 static public IP from cable provider
- 50Mbit Download and 10Mbit Upload from DSL provider
- 300 Mbit Download and 50Mbit Upload LTE router with external antennas, configured as Hot-Standby within VMware SD-WAN
Velocloud SD-WAN:
Two Velocloud Edge 840 SD-WAN appliances in HA mode, managing all Internet connections and one Velocloud Edge 680 appliance.
HomeOffice: (Click on elements)
Camera_iPad
Apple iPad
Control for all Surveillance Cameras
Dell 4K Webcam
Dell 4K Webcam
4K Webcam supporting Windows Hello
USB 3.0 Connection
OBS Setup: Full View
MacBook Air
Apple MacBook Air 13,6″
M2 8 Core CPU
10 Core GPU
24GB RAM
1TB SSD
Using an USB-C Docking Station with 1GbE NIC
AirPodsMax
Apple AirPods Max
On Standing Desk
Alienware Headset
Dell Alienware Headset AW920H
Wireless Gaming Headset with excellent ANC mode
MacBook
Apple MacBook 12″
Core i7
16GB RAM
512GB SSD
LaMetric
La Metric Time
Dynamic Display Clock
Showing Social Media Followers
Showing CO2 in room air from Netatmo weather station
Gigaset
Siemens Gigaset Phone
Office Phone / wired connection
Vertical Mouse
Logitech MX Vertical
Mouse for ergonomic gaming 🙂
Bose Speaker
Bose 2 Node Speaker System
Stereo speaker connected to Avermedia Live Streamer
Kindle
Amazon Kindle Scribe
eBook Reader and scratchbook for quick notes
I love it!
StreamDeckPlus
Elgato Stream Deck Plus
Controlling MuteDeck and Lights
Elgato KeyLights and Hue Light Strips
LiveStreamer
AverMedia Live Streamer
Audio Control for all connected devices:
Avermedia XLR Studio Mic, iPad Pro Line-In, Console, System, Game and Chat.
StreamDeckXL
Elgato Stream Deck XL
Big version of the Stream Deck for OBS Control.
OBS Setup:
Logitech Brio 4K Camera
Dell 4K Camera
CamLink Camera
Logitech Overhead Camera
iPad via Reflector
iPad_Mini
Apple iPad Mini
Older iPad Mini for Elgato StreamDeck Mobile Tests
Keyboard
Contour Balance Wireless Keyboard
Perfect combination with the roller mouse underneath
Rollermouse
Contour Roller Mouse Red Plus Wireless
Best input device ever! I will never work without it
Extended Mouse Pad
Corsair MM700 RGB Extended Mouse Pad
Clean and smooth pad with RGB which can be controlled….
Azeron
Azeron Cyborg Controller
Left Hand Programmable Controller
29 keys and thumbstick
3D
3Dconnexion SpaceExplorer
Controller for CAD workstations
Works fine inside Google Earth
iPadPro Dock
Kensington iPad Pro Dock
Docking Station for iPad Pro 12.9″
Including USB, HDMI and 1GbE NIC
Bluetooth connection to Magic Keyboard and Magic Trackpad
iPad Pro
Apple iPad Pro 12.9″ M1, 1TB
Main use case: Drawings when performing VMware Trainings
With Apple Pencil 2
Lego
Lego Minifigure Collection
My VMware Lego Mini Figures 🙂
8K
Dual Dell 32″ 8K Display
Dell UP3218K with resolution of 7680×4320
They are so beautiful! Each display has 33 million pixels
Connected via dual DisplayPort cables to Dual Nvidia RTX A6000 GPUs
Logitech Brio
Logitech Brio 4K Webcam
Main Webcam with Windows Hello feature
I have plastic eyes attached to it, to make it a little bit more human…..
OBS Setup: Main View
4K
LG Ultrafine Ergo 32UN880 Displays
Dual Setup connected to the Nvidia P4000
Static content like WhatsApp, OBS, Network Monitoring etc….
KeyLight
Elgato KeyLight
Studio Lights connected via WiFi, fully controlable. A very good invest! I am using a retractable green screen in the back for perfect video shots.
Mic
Avermedia XLR Mic 330
Studio Mic connected to Avermedia Live Streamer. Very good quality
KeyLight
Elgato KeyLight
Studio Lights connected via WiFi, fully controlable. A very good invest! I am using a retractable green screen in the back for perfect video shots.
Overhead
Logitech C920 Overhead Webcam
Overhead installed Logitech Webcam to show my entire setup live when doing video calls…..
Controlled via OBS and StreamDeck
Myself
Lego Mini Me version of myself…..
Workstation: (Hover over different areas)
PC
PSU
Corsair Power Supply
Corsair AX1600i Power Supply with USB Management
Nvidia A6000
Dual Nvidia RTX A6000
2 x Nvidia RTX A6000 GPUs with NVLink for Dual 32″ 8K Displays
2x 48GB GDDR6 memory
2 x 84 RT Cores
2 x 336 Tensor Cores
2 x 10.752 CUDA Cores
2 x 300W
Intel P5800X
Intel Optane NVMe
1 x Intel P5800X Optane with 1.6TB
PCIe 4.0 Adapter
Insane Performance 🙂
Soundblaster
Soundblaster AE5 Plus
PCIe Sound with Dolby Digital and DTS Encoding
RGB Option
Nvidia P4000
Nvidia P4000 GPU
1 x Nvidia P4000 GPU for 2 x 32″ 4K Displays
8GB GDDR5
1792 CUDA Cores
105W Power
CPU
Intel Xeon W-3335
16 Cores 3.40GHz with Turbo up to 4.0 GHz
RAM

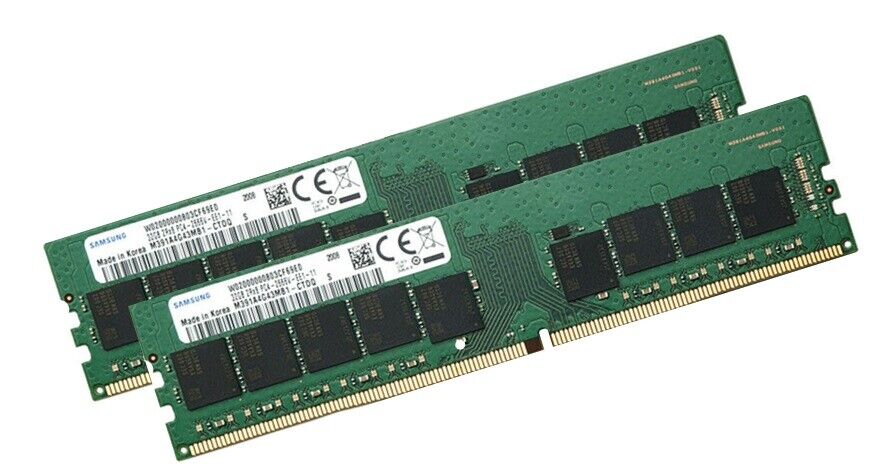

512GB RAM
8 x 64GB ECC DDR4-3200MHz
SSD
4TB SSD RaidO
2 x 2TB SATA SSD for Downloads and Games
Goverlay
Internal Display
USB connected Goverlay 3,5″ Display with custom layout
CPU load, GPU load, Optane utilization, PSU load and Network utilization
Fans
Case Fans
Front: 3 x 120mm Noctua Fans (ultra quiet)
Back: 2 x 120mm Corsair RGB Fans
MB
SuperMicro Mainboard
Supermicro X12SPA-TF
16 DIMM Slots (8 used)
4 x PCIe 4.0×16
3 x PCIe 4.0×8
4 x PCIe 4.0 M2
Dedicated IPMI 1GbE Port
1 x 1GbE Port
1 x 10 GbE Port
Case
Coolermaster C700M
E-ATX Case
RGB Build in
Corsair Commander for Fan and RGB Control
RGB Fans
Corsair 120mm RGB
Intel P5800X Cooling
RGB
RGB Stripes
Controlled via Soundblaster AE5plus
RGB Fans
Corsair 120mm RGB
Backside Cooling (getting heat out of case)
RAM
512GB RAM
8 x 64GB ECC DDR4-3200MHz
Control
Corsair Commander Pro
USB connected Controller for all Fans and RGB Lights
NICs
Network Interfaces
1 x IPMI 1GbE
1 x 1 GbE for VLANs (tagged)
1 x 10 GbE copper with media converter
Fibre Cabling all around my house + copper
#HomeLabKing
